Replace both air filter inserts

Prerequisite

• Ignition is switched off.

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVE THE COVER IN THE ENGINE COMPARTMENT ON TOP .
• Refer to REMOVE THE TOP RIGHT COVER IN THE ENGINE COMPARTMENT .
• Refer to REMOVING THE COVER PANEL OF THE LEFT DME CONTROL UNIT .
• Refer to REMOVING THE COVER OF THE RIGHT DME CONTROL UNIT .

Removing the left air filter insert

Prerequisite

Ignition is switched off.

Courtesy of BMW OF NORTH AMERICA, INC.

• If fitted:

  Loosen screws (1).

  Remove strut (2).

• Unfasten circlip (1).
• Remove screws (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disconnect the upper section (1) of the clean air pipe from the lower part (2) of the clean air pipe.
• Unlock the locks (3).
• Feed out left intake filter housing (4) to the top and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove screws (arrows).
• Remove the upper section of the intake filter housing (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the air filter insert (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the right air filter insert

Prerequisite

Ignition is switched off.

Courtesy of BMW OF NORTH AMERICA, INC.

• If fitted:

  Loosen screws (1).

• Remove strut (2).
• Unfasten clamp (1).
• Remove screws (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disconnect upper section (1) of the clean air pipe from lower section (2) of the clean air pipe.
• Unlock the locks (3).
• Thread out and remove right intake filter housing (4) towards top.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove screws (arrows).
• Remove the upper section of the intake filter housing (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the air filter element (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the right air filter insert

• Clean inside of lower section of intake filter housing (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

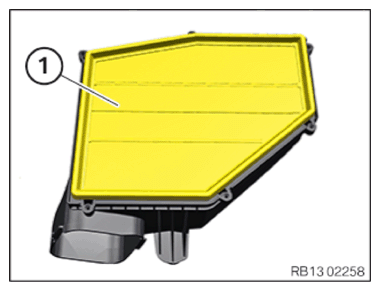

• Install the air filter element (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

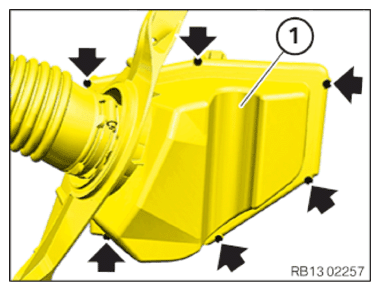

• Insert and install the upper section of the intake filter housing (1).
• Tighten screws (arrows).
  TIGHTENING TORQUES SPECIFICATION



  Intake filter housing upper section to intake filter housing lower section
  Self-tapping bolt	Tightening torque	2.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the rubber mount (1) for correct fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the intake filter housing (4) on the right.
• Make sure that locks (3) lock correctly.
• Connect upper section (1) of the clean air pipe with the lower section (2) of the clean air pipe.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the bolts (arrows).

  Parts:  Screws

• Tighten screws (arrows).
  TIGHTENING TORQUES SPECIFICATION



  Tension strut/Front-end strut to shock tower
  External Torx socket M10X45 Replace screws.	Joining torque  Angle of rotation	56 Nm 90°

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Tension strut/Front-end strut, front
  Hexagon screw M8X35 Replace screws.	Joining torque  Angle of rotation	28 Nm 90°

• Tighten clamp (1).
  TIGHTENING TORQUES SPECIFICATION



  Upper clean air pipe to lower clean air pipe
  Hose clamp	Tightening torque	3 Nm

• If fitted:

  install strut (2).

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the left air filter insert

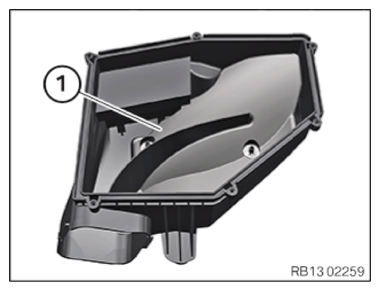

• Clean inside of lower section of intake filter housing (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

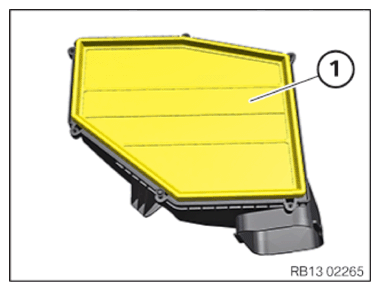

• Install the air filter insert (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

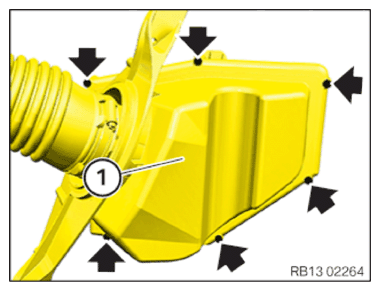

• Insert and install the upper part of the intake filter housing (1).
• Tighten the screws (arrows).
  TIGHTENING TORQUES SPECIFICATION



  Intake filter housing upper section to intake filter housing lower section
  Self-tapping bolt	Tightening torque	2.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the rubber mount (1) on the lower section of intake filter housing (2) for correct fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check rubber mount (1) for correct fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the intake filter housing (4) at left.
• Make sure that the locking mechanisms (3) lock correctly.
• Connect the upper section (1) of the clean air pipe with the lower section (2) of the clean air pipe.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the bolts (arrows).

  Parts:  Screws

• Tighten the screws (arrows).
  TIGHTENING TORQUES SPECIFICATION



  Tension strut/Front-end strut to shock tower
  External Torx socket M10X45 Replace screws.	Joining torque  Angle of rotation	56 Nm 90°

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Tension strut/Front-end strut, front
  Hexagon screw M8X35 Replace screws.	Joining torque  Angle of rotation	28 Nm 90°

• Tighten clamp (1).
  TIGHTENING TORQUES SPECIFICATION



  Upper clean air pipe to lower clean air pipe
  Hose clamp	Tightening torque	3 Nm

• If fitted:

  Install the strut (2).

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
• Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
• Refer to INSTALL THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
• Refer to INSTALL THE COVER IN THE ENGINE COMPARTMENT ON TOP .
• Refer to INSTALLING ACOUSTIC COVER .
