65 13 Loudspeaker And Cover Panel
>>
65 13 080 Removing and installing/replacing the speaker (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the tweeter from the rear door
Remove the tweeter from the rear door
Preliminary works
Remove the door handle
COVER
.
Remove rear door
TRIM PANEL
.

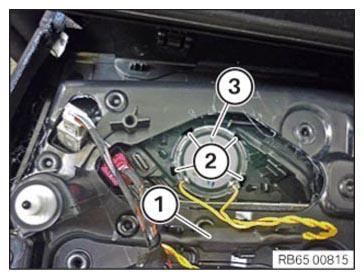

Unclip the resistance (1).
Disconnect plug connection.
Loosen the latch mechanisms (2).
Remove the tweeter (3).
Courtesy of BMW OF NORTH AMERICA, INC.
