65 50 125 Removing and installing left or right rear compartment monitor (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Installing the rear monitor
Installing the rear monitor

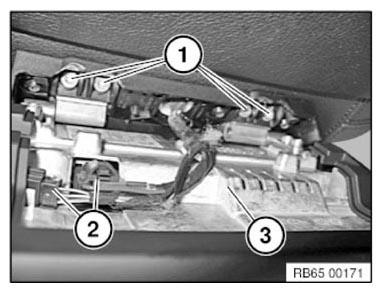

Correctly position the rear compartment monitor (3) and tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
Hinges on front seat
Tightening torque
2.1 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Insert and connect the connector (2).

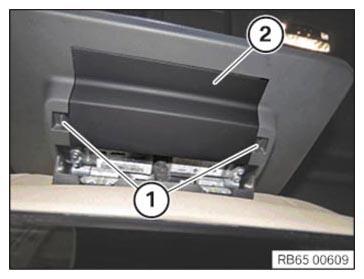

Correctly position the cover (2) and engage in the latch mechanisms (1).
Do not reuse any removed covers (2)!
