Replacing hinges for rear monitor
NOTE:
RISK OF DAMAGE Electrostatic discharge. Damage to or destruction of electrical components.
- Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35...NOTES for ESD protection (electrostatic discharge)
Preliminary works
- Remove REAR MONITOR .

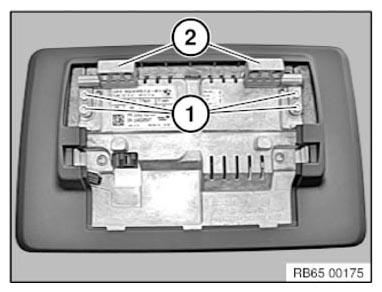

- Loosen screws (1).
- Remove and replace the hinges (2).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Hinge to rear monitor | ||
| Tightening torque | 2.1 Nm | |
Follow-up Work
- Install the REAR MONITOR .
