Installing the pedestrian protection sensor

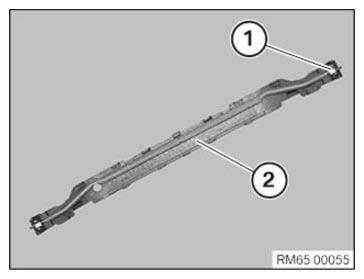

• Check the impact absorber (2) for damage.

  Replace the damaged impact absorber (2).

• Carefully insert the pedestrian protection sensor (1) into the impact absorber (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

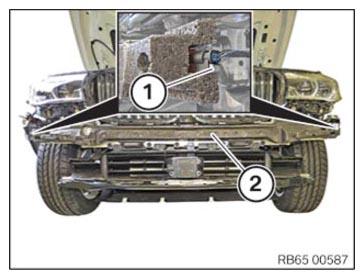

• Connect connectors (1) and lock.
• Attach the impact absorber (2) at the bottom and then press it in at the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install front BUMPER PANEL .
• Install front ORNAMENTAL GRILLE .
• Install (partially removed) front section of front wheel ARCH COVER
• Connect all battery EARTH LEADS .
• Activate the 48 v ELECTRICAL SYSTEM .
