Removing the trim on the bumper panel at the side
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary works
- Remove front ORNAMENTAL GRILLE .
- Partially remove the front section of the front wheel arch COVER
- Remove front BUMPER PANEL .
- Remove the fog light SUPPORT
NOTE:
Description is for left component only. Procedure on the right side is identical.

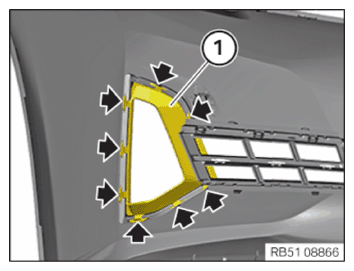

- Release the trim (1) at the latch mechanisms (arrows) and remove it.
