Install front brake caliper
Install front brake caliper

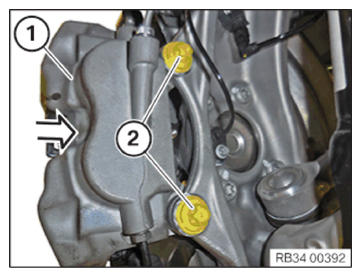

Install the brake caliper (1) in the arrow direction.
Replace screws (2).
Parts:
Screws
Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.
tightening torque
110 Nm
