Loosen the banjo bolt for the coolant return line at the exhaust turbocharger for cylinders 1 to 4
Loosen the banjo bolt for the coolant return line at the exhaust turbocharger for cylinders 1 to 4

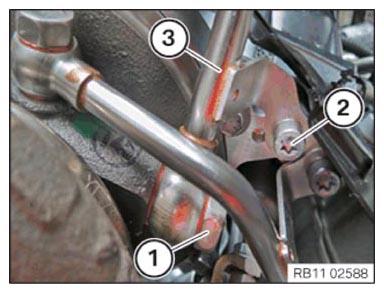

Unscrew the banjo bolt (1).
Loosen screw (2).
Set the coolant return line (3) aside.
Courtesy of BMW OF NORTH AMERICA, INC.
