Mounting the special tool on the intake camshaft for cylinders 1 through 4
Mounting the special tool on the intake camshaft for cylinders 1 through 4

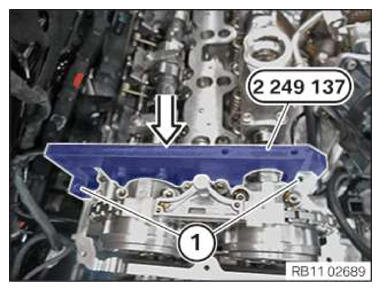

Position special tool
2 249 137
on the intake camshaft for cylinders 1 through 4 in the arrow direction.
Secure special tool
2 249 137
using screws 1 (1) on the cylinder head to 10 Nm.
