Installing the right hands-free microphone
Installing the right hands-free microphone

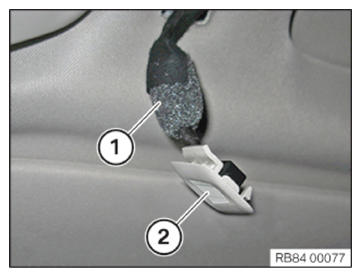

Connect the connector to the hands-free microphone (2).
Close the insulation (1).
Courtesy of BMW OF NORTH AMERICA, INC.

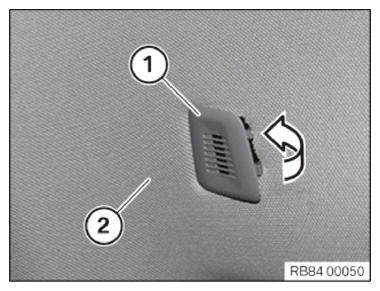

Position hands-free microphone (1) in headlining (2) in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
