Installing the right spindle drive partially
Installing the right spindle drive partially

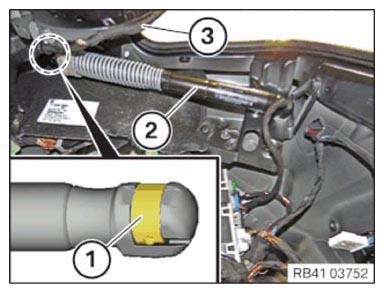

Check the clamp (1) Is fitted correctly.
Connect ball socket of the spindle drive (2) to ball pivots.
Clip in wiring harness (3) on the tailgate hinge.
Courtesy of BMW OF NORTH AMERICA, INC.
