Installing the service opening cover

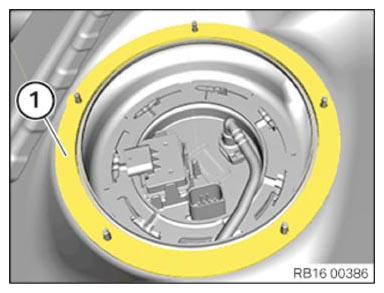

- Replace the seal (1).
Parts: Gasket
- Mount the cover (2).
Arrow must point in the driving direction.
- Replace the plastic nuts (1).
Parts: Plastic nuts
- Insert plastic nuts (1) and tighten.TIGHTENING TORQUES SPECIFICATION

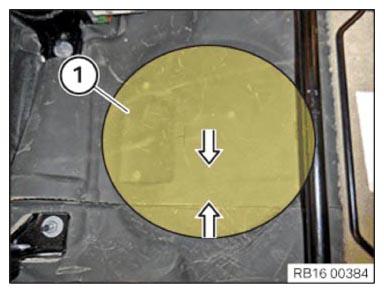

Cover of sensor opening on body Replace plastic nut. tightening torque 3 Nm - Close the floor trim in the area (1) in the arrow direction.
