Installing the transmission oil pan (GA8HP50Z, GA8HP51Z, GA8HP75Z, GA8HP76Z)
NOTE:
TECHNICAL INFORMATION
The transmission oil pan must be replaced each time it is released.
The transmission oil pan must be replaced each time it is released.
- Clean the contact surface of the transmission oil pan on the transmission.
- Replace screws (1) to (13).
Parts: Screws
- Position the transmission oil pan.
- Hand-tighten the bolts.

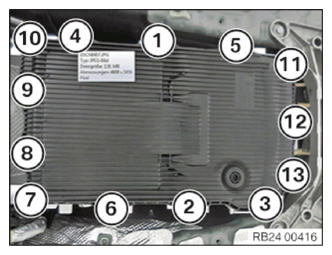

- Tighten the screws in order from (1) to (13).TIGHTENING TORQUES SPECIFICATION

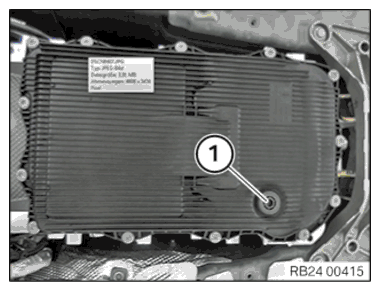

Transmission oil pan M6 Replace screws. tightening torque 10 Nm - If necessary, tighten the oil drain plug (1).TIGHTENING TORQUES SPECIFICATION
Oil drain plug M18 Replace screw. tightening torque 8 Nm
