Installing the wiring harness (M Sport steering wheel)

Courtesy of BMW OF NORTH AMERICA, INC.

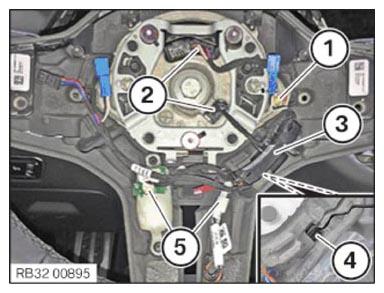

• Position the plug connection (4) and the control unit for the steering wheel electronics (3) in the steering wheel.
• Route the wiring harness in the steering wheel according to the illustration.
• Connect the grounding cable to the impact plate.
• Connect connectors (2) and lock.
• If installed: Connect connectors (5) and lock.
• Position the grounding cable and tighten the screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Grounding cable to steering wheel
  Screw	tightening torque	2 Nm
