Lifting and securing the rear axle differential

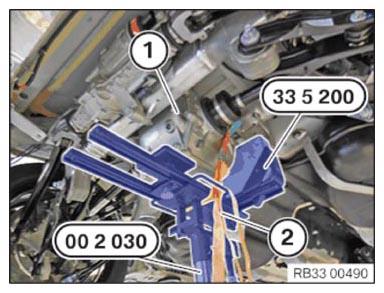

- Lift and position the rear axle differential (1) with the special tool 0 496 009 (33 5 200).

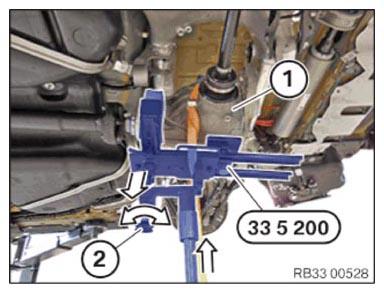

- While lifting the rear axle differential (1) correct the installation position by twisting the adjustment screw (2).
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Rear differential to rear axle carrier, front M12 Replace screw. Joining torque 100 Nm Angle of rotation 90° - Replace the screw (1).
Parts: Screw
- Insert the screw (1).
- Replace nut (1).
Parts: Nut
- Tighten nut (1).TIGHTENING TORQUES SPECIFICATION
Rear differential to rear axle carrier, rear M14 Replace screw and nut. Joining torque 165 Nm Angle of rotation 90° - Release the luggage strap (2) and remove from rear axle differential (1).
- Let down special tools 0 496 009 (33 5 200)
and 0 490 133 (00 2 030)
and place to the side.
