Measuring the ride height of the rear axle and adjusting the normal position

Set vehicle on its wheels (for example, workshop pit or vehicle lift for Kinematics Diagnosis System).

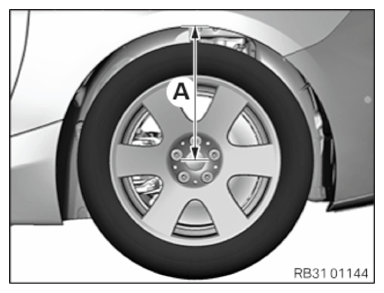

Measure the ride height (A).

Load or unload the vehicle until the ride height (A) is within the tolerance.

If the ride height (A) has to be corrected for vehicles with air suspension, this must be done with the diagnostic system and the corresponding service function.

Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA SPECIFICATION

Ride height of rear axle G30 Rough road package for rear wheel drive
Measured from bottom center of rim flange (1) to lower edge of wheel arch (2) Courtesy of BMW OF NORTH AMERICA, INC.	17" wheel rim	622 mm
	18" wheel rim	636 mm
	19" wheel rim	648 mm
	20" wheel rim	661 mm

TECHNICAL DATA SPECIFICATION

Ride height of rear axle G30 for standard suspension, rear wheel drive
Measured from bottom center of rim flange (1) to lower edge of wheel arch (2) Courtesy of BMW OF NORTH AMERICA, INC.	17" wheel rim	602 mm
	18" wheel rim	615 mm
	19" wheel rim	628 mm
	20" wheel rim	640 mm

TECHNICAL DATA SPECIFICATION

Ride height of rear axle G30 Sport suspension settings for rear wheel drive vehicle
Measured from bottom center of rim flange (1) to lower edge of wheel arch (2) Courtesy of BMW OF NORTH AMERICA, INC.	17" wheel rim	592 mm
	18" wheel rim	605 mm
	19" wheel rim	617 mm
	20" wheel rim	630 mm
