Mount the front caliper carrier
Mount the front caliper carrier

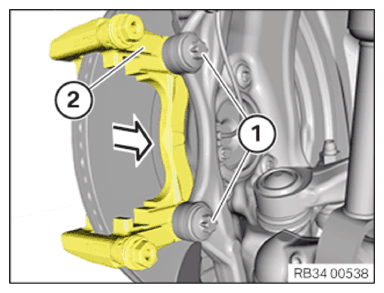

Fit the brake anchor plate (2) in arrow direction.
Replace screws.
Parts:
Screws
Insert screws (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.
tightening torque
110 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
