Mounting the oil filter element in the oil filter cover
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

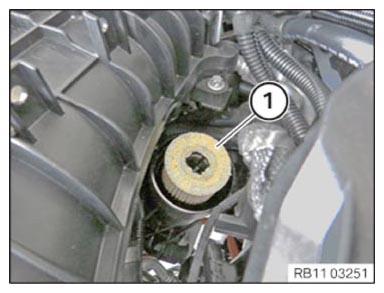

- Remove the oil filter element (1).
- Replace the O-ring (1) and the oil filter element (2).
Parts: O-ring, oil filter element
- Make sure that the O-rings (1) and (3) are installed correctly.
- Coat the O-rings (1) and (3) with motor oil.
- Feed in and install the oil filter element (2) in arrow direction
on the oil filter cover (4).
The oil filter element (2) must engage audibly.
