Remove front ornamental grille
NOTE:
TECHNICAL INFORMATION
These repair instructions do not apply for G30, G31, G38 with front ornamental grille with shiny black finish. For this version, there are separate repair instructions.
These repair instructions do not apply for G30, G31, G38 with front ornamental grille with shiny black finish. For this version, there are separate repair instructions.
Prerequisite
Engine compartment lid is open.
NOTE:

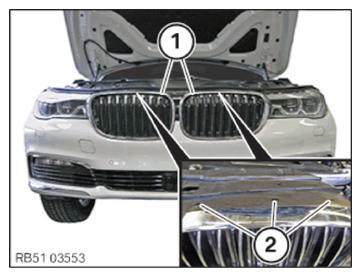

Schematic diagram is for example purposes. Some parts may differ in certain details.
- G11/G12 until 03.19, G30/G31/F90 until 7.20 or G38 until 09.20:
Handle the front ornamental grille (1) in the lower area and unclip.
Unclip the upper latch mechanisms (2) by swivelling them upwards.
Avoid contact between front ornamental grille (1) and the bumper panel!
Pull off front ornamental grille (1) to the front.
- G11/G12 from 03.19, G30/31/F90 from 7.20 or G38 from 9.20:
Remove front ornamental grille (1) from the latch mechanisms (2).
Pull off front ornamental grille (1) from the rest of the latch mechanisms to the front.
