Loosening the tension strut on the left and right from the front axle support
Loosening the tension strut on the left and right from the front axle support
NOTE:
Perform the steps on the right and left side.

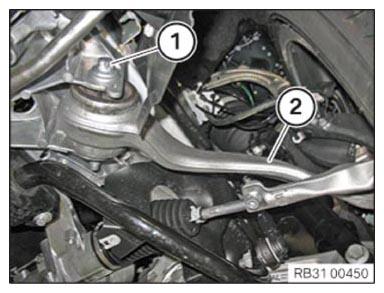

Loosen screw (1).
Release the tension strut (2) from the front subframe.
