Upper slide rail of camshaft cylinder 5 to 8
Upper slide rail of camshaft cylinder 5 to 8

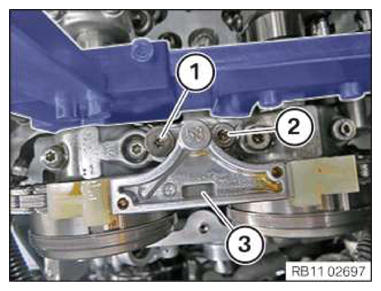

Secure the slide rail (3) using screws (1) and (2).
TIGHTENING TORQUES SPECIFICATION
Sliding rail to cylinder head
M6x67 M6x48
10 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
