Attaching refrigerant lines to air conditioning compressor
- Replace the sealing rings with the special tool 0 496 714 (00 9 030).
Parts: Sealing rings
- Replace the guide sleeves using special tool 2 298 505
Parts: Guide sleeves

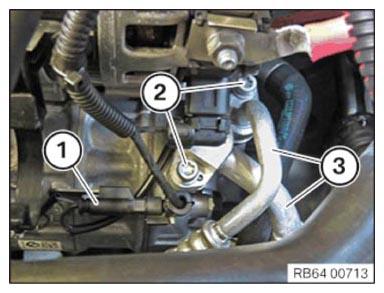

- Position refrigerant lines (3) correctly.
- Tighten screws (2).TIGHTENING TORQUES SPECIFICATION
Refrigerant line on air conditioning compressor M8 tightening torque 19 Nm
