Draining the motor oil

Removing the acoustic cover

NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.

Disassemble or mount the acoustic cover/design cover carefully.
Disassemble or mount snap-lock couplings of the ball pivots one after the other.
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
Use only distilled water as an auxiliary material during installation, no lubricants.

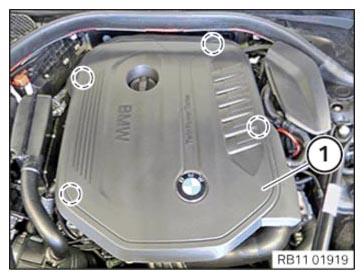

Unclip the acoustic cover (1) from the holders in the marked area towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

Releasing the oil filter cover

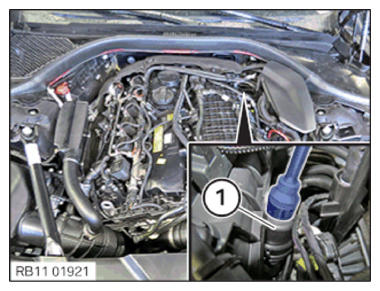

Loosen the oil filter cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Releasing the oil drain plug

NOTE: TECHNICAL INFORMATION
Catch and dispose of drained motor oil in a suitable collecting vessel. Observe country-specific waste disposal regulations.
Open oil drain plug (1) from the oil sump.
Drain motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.
