Fasten charge air line to the throttle body
Fasten charge air line to the throttle body

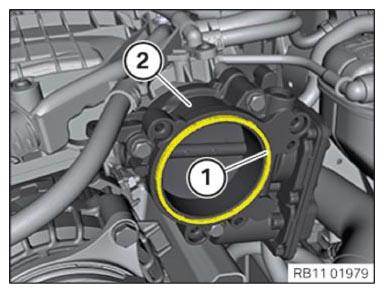

Replace the gasket (1) on the throttle body (2).
Parts:
Gasket
Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
Charge air duct to throttle body
M6x30
Tightening torque
8 Nm
Connect connector (1).
Courtesy of BMW OF NORTH AMERICA, INC.
