Fastening high-voltage cables on the electrical machine electronics

NOTE: DANGER
Damaged high-voltage cables, high-voltage connectors and high-voltage components.
Mortal hazard through electric shock!

Do not repair damaged high-voltage cables, high-voltage connectors and high-voltage components. They must always be replaced with new parts in their original packaging.
If high-voltage cables, high-voltage connectors and high-voltage components are damaged and contact protection is not longer provided, technical support must be contacted immediately.

NOTE: TECHNICAL INFORMATION
Observe the additional information for unlocking and disconnecting various plug connections in electrical and hybrid vehicles!

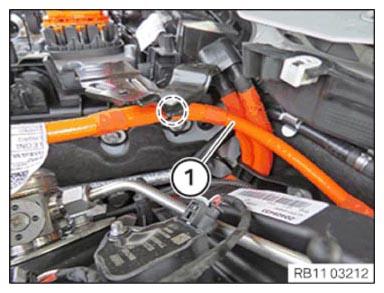

Clip the high-voltage cable (1) into the holder in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

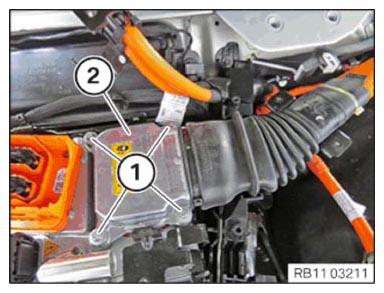

Connect the high-voltage connector (2) on straight.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

High-voltage cable to electrical machine electronics
M6x25	Tighten screws in crosswise sequence.
	Joining torque	3 Nm
	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

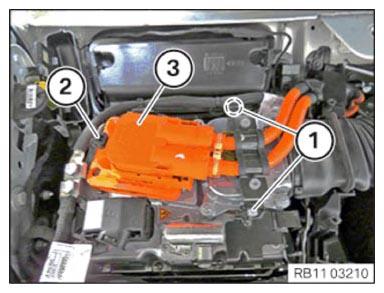

Connect and lock the high-voltage connectors (3).
Connect connectors (2) and lock.

Position the holder for the tension relief and tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Holder for tension relief
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

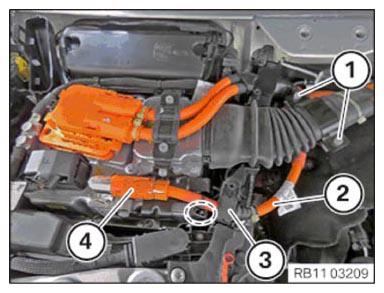

Connect and lock the high-voltage connectors (4).
Correctly attach high-voltage cable (2) in the marked area and detach from the rubber grommet (3).

Position the upper section of the holder for the tension relief and tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Holder for tension relief
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

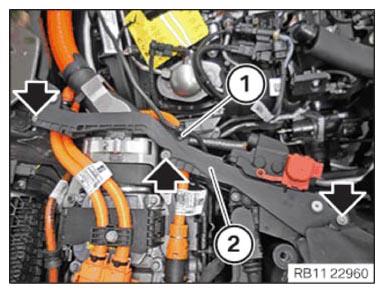

Feed in the sealing frame (2) and install.

Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Sealing frame at the top on sealing frame at the bottom
RF5x26.5	tightening torque	2.5 Nm

Secure the clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.
