Fastening the transmission wiring harness
Fastening the transmission wiring harness
Clip the transmission wiring harness downwards in the area (1) and lock it.
Clip the engine wiring harness onto the bracket (2).
Courtesy of BMW OF NORTH AMERICA, INC.

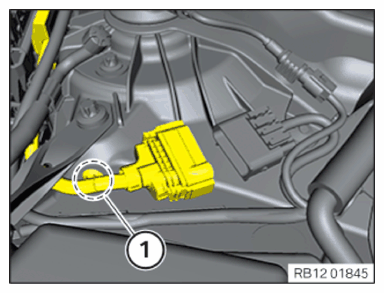

Lock the clip of the vehicle wiring harness (1).
Courtesy of BMW OF NORTH AMERICA, INC.

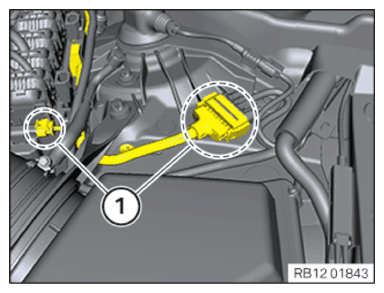

Connect and lock the plug connections (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
