Installing the roof trim strip

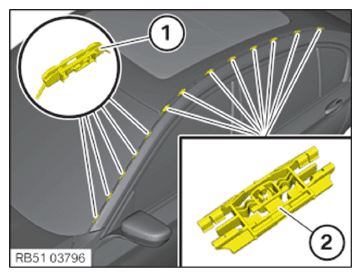

Check the clamps (1) and (2) on the vehicle and replace as needed.
In vehicles with CFRP roof, clamps must (2) always be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

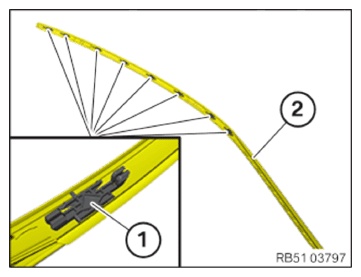

Check the clamps (1) at the roof trim strip (2) and replace as needed.

Courtesy of BMW OF NORTH AMERICA, INC.
Install the roof trim strip and align it on the roof.
Engage the roof trim strip in the clamps (1) and (2) starting from the front.

Courtesy of BMW OF NORTH AMERICA, INC.
