Fix hydraulic lines
Fix hydraulic lines
Replace sealing rings.
Parts:
Sealing ring

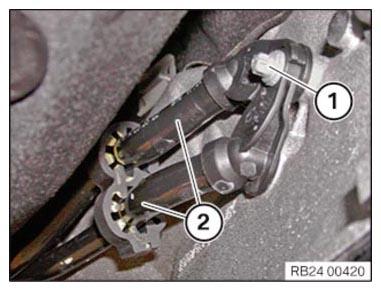

Install hydraulic lines (2) on transmission.
Position and tighten the screw (1).
TIGHTENING TORQUES SPECIFICATION
Transmission oil line to transmission
M6x25
Replace the sealing ring.
tightening torque
8 Nm
