Flange-mount transmission

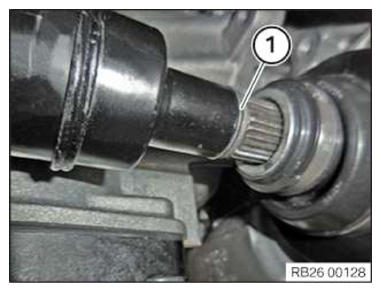

Replace O-ring (1).
The O-ring must be replaced before installing the front prop shaft in the transfer box (VTG).

Parts: O-ring

Courtesy of BMW OF NORTH AMERICA, INC.

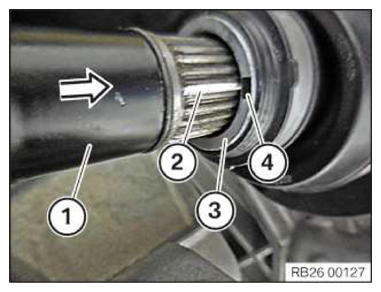

Position the front prop shaft (1) on the output flange (3) of the transfer box (VTG).
Match the front prop shaft (1) with the marks (2) and (4).
Slide the front prop shaft (1) up to the stop into the output flange (3) of the transfer box.

Courtesy of BMW OF NORTH AMERICA, INC.

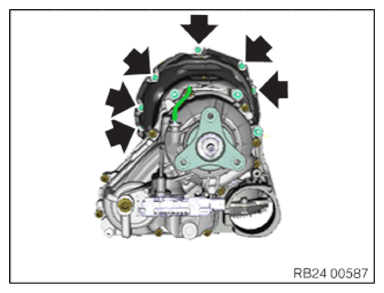

Flange-mount the transmission on the transfer box (VTG).
Turn the torque converter until the bore of the torque converter is aligned with the bore of the drive plate.
Fit the transmission bolts (arrows) and apply lightly.

Courtesy of BMW OF NORTH AMERICA, INC.
