If installed: Connect the cable (additional work on active stabilizer (flat rate unit number: 33 31 900))
If installed: Connect the cable (additional work on active stabilizer (flat rate unit number: 33 31 900))
Connect the cable of the active stabilizer in the rear
Connect connectors (1) and lock.
Connect the connector (2) and secure the cable on the holder (3).
Courtesy of BMW OF NORTH AMERICA, INC.

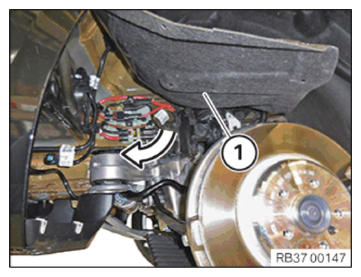

Fold the wheel arch trim panel (1) downwards.
Courtesy of BMW OF NORTH AMERICA, INC.
Tighten nuts (2).
Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
Wheel arch cover
screw
3 Nm
Plastic nut
2.6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
