If installed: Install the mounting block for the torsion struts
If installed: Install the mounting block for the torsion struts

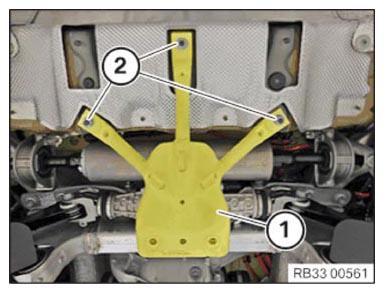

Position the mounting frame (1).
Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
Stand block for torsion struts to body
M10
56 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Position the mounting frame (1).
Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
Stand block for torsion struts to body
M10
56 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
