Installing the center armrest storage compartment
- Connect associated connector.

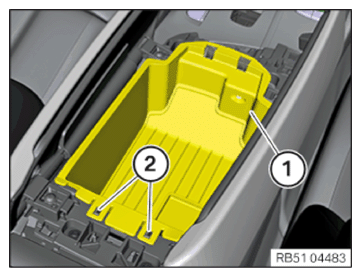

- Insert the storage compartment (1) with the front guides first and push it forward.
- Push the storage compartment (1) down in the back and slide it to the back.
The detents (2) must engage audibly.
- Engage the storage compartment (1) completely downward.

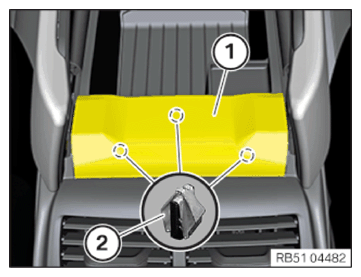

- Clip the trim (1) into the clamps (2) from the top.

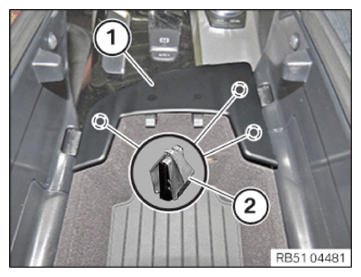

- Clip the trim (1) into the clamps (2) from the top.
- Connect associated connector.
- Insert the storage compartment (1) with the front guides first and push it forward.
- Push the storage compartment (1) down in the back and slide it to the back.
The detents (2) must engage audibly.
- Engage the storage compartment (1) completely downward.
- Clip the trim (1) into the clamps (2) from the top.
- Clip the trim (1) into the clamps (2) from the top.
