Installing the clean air pipe of cylinder bank 2

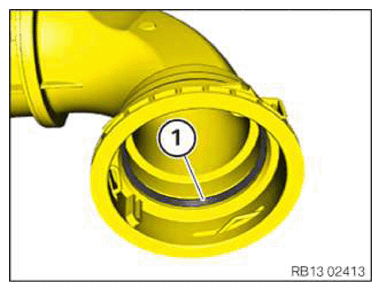

- Check sealing ring (1) for damage, replace if necessary.

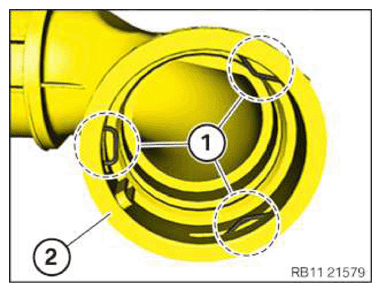

- Before installing the clean air pipe (2), move the retaining clip into the locked position (1).

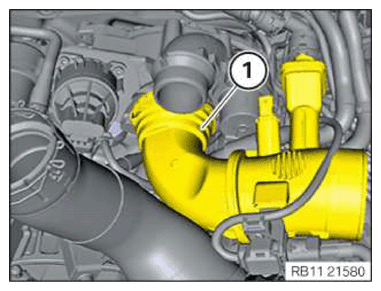

- Position the clean air tube (1).
- Press the clean air pipe (1) toward the exhaust turbocharger until the retaining clip audibly locks.
- Clip in the wiring harness mounting (2) on the fastening clamps (1).
- Connect connectors (1) and lock.

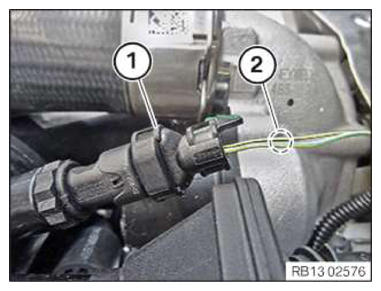

- Make sure that the connector of the high-pressure pump (1) is not confused with the connector of the intake air temperature sensor.
- If not yet available: Attach colored marks (3) to the plug connections of the high pressure pump.
If necessary identify the connectors using the wiring diagram and the cable colors in the area (2).
- Make sure that the connector of the intake air temperature sensor (1) is not confused with the connector of the high pressure pump.
- If necessary, identify the connectors using the wiring diagram and the cable colors in the area (2).
- Position the tank ventilation line (1).
- Press the tank vent line (1) toward the clean air pipe until the retaining clip audibly locks.
