Installing the cooling module cover

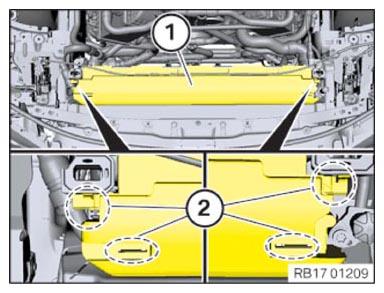

Insert the cover (1) of the cooling module and engage it with the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview the removed condition is shown here.

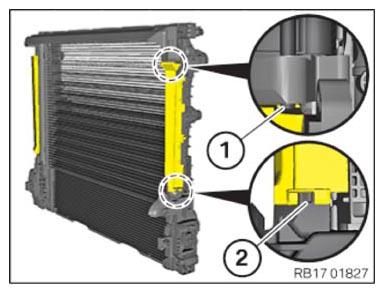

The cooling module guiding element, right, must be centered on attachment points (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview the removed condition is shown here.

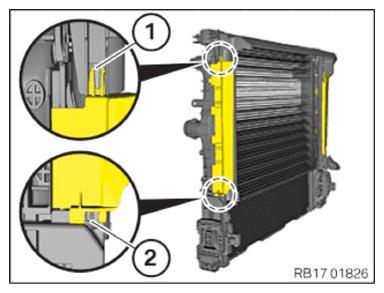

The cooling module guiding element, left, must be centered on attachment points (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
