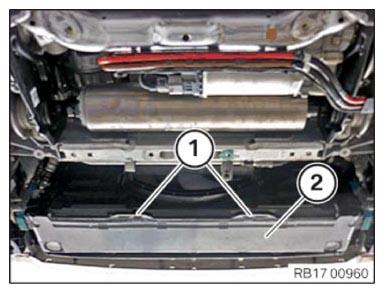

Installing the cover on the bottom cooling module

Insert the cover (2) and lock the locks (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the cover (3) at the bottom left cooling module.
The lock (2) must audibly engage.

The lock (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install cover (3) on cooling module, bottom right.
The lock (2) must audibly engage.

The lock (1) must audibly engage.
