Installing the front brake pad wear sensor

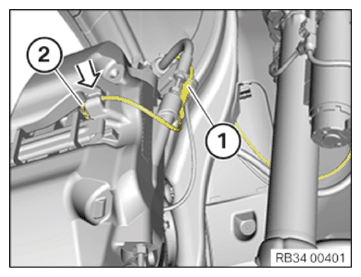

- Attach the cable of the brake pad wear sensor (2) in the holder (1).
- Install the brake pad wear sensor (2) in the brake pad in the direction of the arrow.
Ensure brake pad wear sensor fits correctly in brake pad.
- Attach cable of brake pad wear sensor in holders (1).
- Connect the plug connection.
- Close sealing cap (2).
