Installing the front right bumper cover on the side panel

NOTE: Description is for left component only. Procedure on the right side is identical.

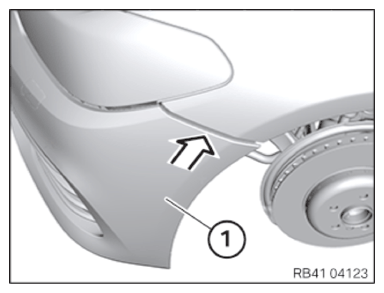

Position the bumper cover (1) at the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

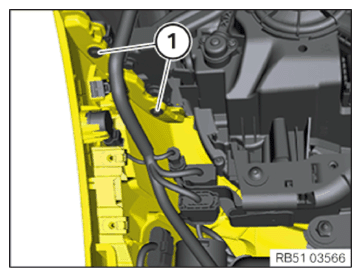

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Bumper cover on side wall
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
