Installing the heat shield at the rear
Installing the heat shield at the rear

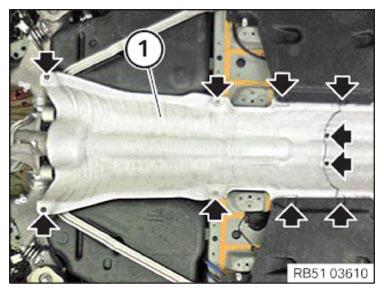

Position the heat shield at the rear (1).
Tighten nuts and screws (arrows).
TIGHTENING TORQUES SPECIFICATION
Heat shield to underbody
Screws and nuts
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
