Installing the heat shields

Install heat shield (1).

Tighten nuts and screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

G14435929

Courtesy of BMW OF NORTH AMERICA, INC.

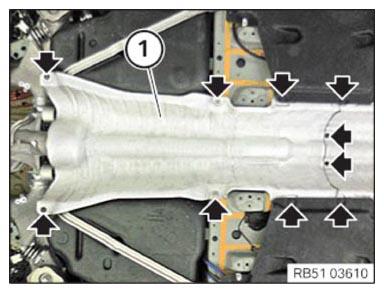

Install heat shield (1).

Tighten nuts and screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

G14435930

Courtesy of BMW OF NORTH AMERICA, INC.
