Installing the housing cover for the fuel tank

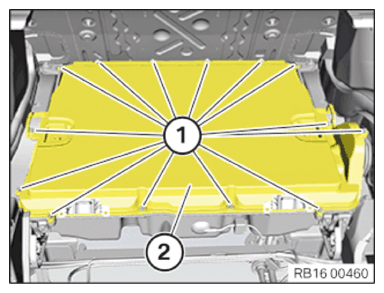

- Position the housing cover (2).
- Version A:
Tighten the screws (M5) (1) crosswise simultaneously.
TIGHTENING TORQUES SPECIFICATIONHousing cover on lower housing section M5 screw Tightening torque 4.5 Nm - Version B:
Replace screws (M6) (1).
Parts: Screws
- Tighten the screws (M6) (1) crosswise simultaneously.TIGHTENING TORQUES SPECIFICATION
Housing cover on lower housing section M6 screw Replace screws. tightening torque 8 Nm
