Installing the intake filter housing (tension strut removed on shock tower)

Prerequisite

The tension strut on the shock tower is removed.

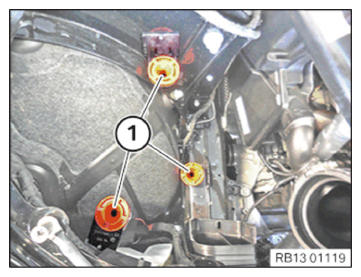

• Check rubber mount (1) for correct fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

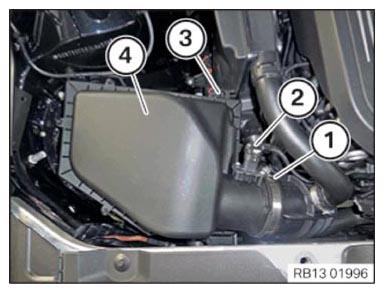

• Insert the intake filter housing (4) and engage in the rubber mounts.
• Tighten down screw (3).
  TIGHTENING TORQUES SPECIFICATION



  Intake silencer housing to resonator
  TS5x20	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (2) of the hot film air mass meter.

  The connector (2) must lock audibly.

• Tighten clamp (1).
  TIGHTENING TORQUES SPECIFICATION



  Clean air pipe to upper section of intake filter housing
  cl.	Tightening torque	3 Nm
