Installing the output shaft
NOTE:
The figure shows the procedure for the front axle differential. The procedure for the bearing bracket is identical.

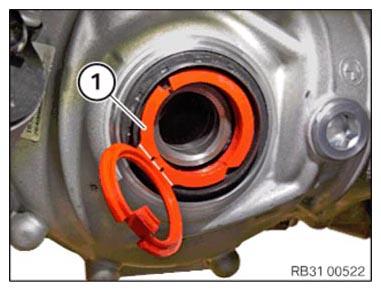

- Fold open the assembly protection ring (1).
- Insert the output shaft into the front axle transmission and/or the bearing bracket.

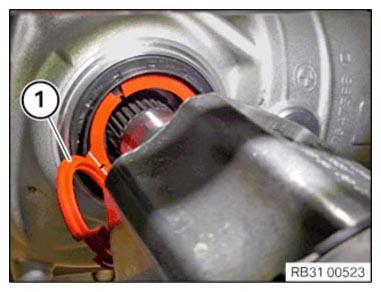

- Pull on the lug (1) of the assembly protection ring until one of the two predetermined breaking points breaks.
- Pull out and dispose of the installation protection ring.

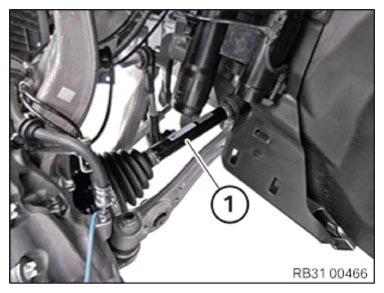

- Slide the output shaft (1) into front axle transmission or bearing bracket up to the stop.
Output shaft coupling must snap audibly into place.
