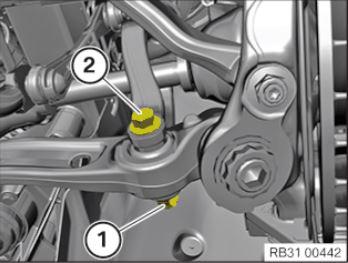

Removing the spring strut holder

Loosen nut (1).

Remove the screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

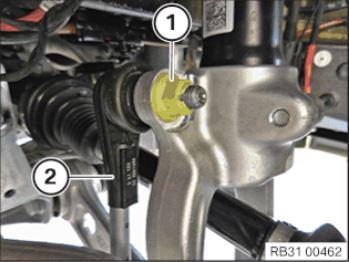

Releasing the anti-roll bar link from the spring strut holder:

Unfasten nut (1).

Release the anti-roll bar link (2) from the spring strut holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Marking the installation position of the spring strut holder:

Mark the installation position of the spring strut holder (1) for the spring strut (2) before the removal.

Be sure  to make a color coding (3) in extension of the elevation (4).

Courtesy of BMW OF NORTH AMERICA, INC.

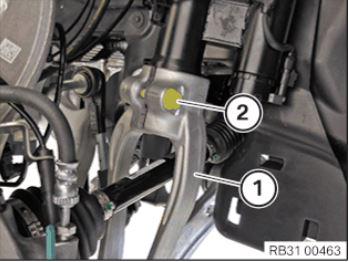

Release the screw (2) from the spring strut holder (1).

CAUTION:

Courtesy of BMW OF NORTH AMERICA, INC.

RISK OF DAMAGE

Failure to comply with the specification.

Component damage.

All specifications for installation and removal must  be observed.

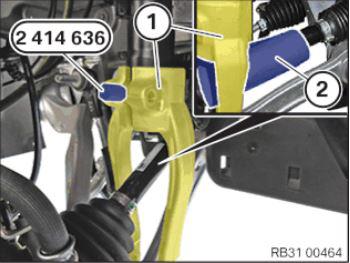

Expand spring strut holder (1) using special tool 2 414 636.

Protecting the output shaft from damage with a towel is mandatory  (2).

Feed out and remove the spring strut holder (1) downward.

Courtesy of BMW OF NORTH AMERICA, INC.
