Remove the backrest cover with the upholstery for the front seat
- Version with rear-cabin monitor:
Loosen screws (1).
Remove trim (2).

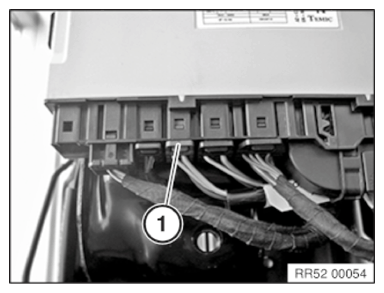

- Unlock the plug connection (1) for the seat heating and disconnect it.
- Feed the cable out of the seat mechanism.
- Loosen clip (1).
- Detach the backrest cover (2) in this area (3).
- Detach the welt from the backrest cover (1).
- Push through the backrest cover (1) towards the front.
- Loosen the clips (1).
- Remove the backrest cover and upholstery (2) from the backrest frame towards the top.
- If necessary, remove the associated wiring harness.
