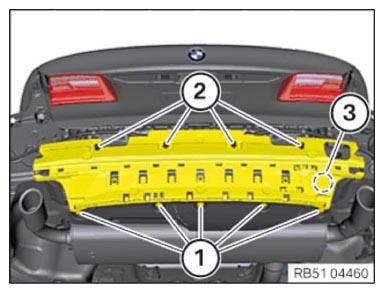

Remove the brace for the rear bumper
Remove the brace for the rear bumper
Loosen screws (1).
Loosen the expanding rivet (2).
Remove the brace and disconnect the plug connections in area (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
