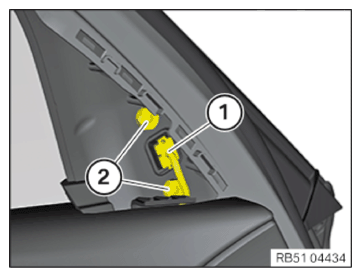

Fit exterior mirror

Attach exterior mirror and secure it against falling out.
Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Exterior mirrors
	Tightening torque	8 Nm

Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

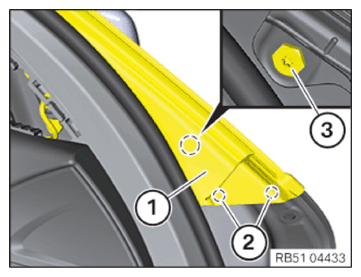

Push the sealing (1) slightly to one side and tighten the screw (3).

TIGHTENING TORQUES SPECIFICATION

Exterior mirrors
	Tightening torque	8 Nm

Secure the sealing (1) on the clips (2).

G14195335

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

Install the mirror triangle COVER .
Install the top view CAMERA .
Install the exterior rearview mirror RETAINING RING .
Install the exterior mirror PROTECTIVE CAP .
Install the mirror GLASS .
