Remove the cylinder head cover acoustic cover
Remove the cylinder head cover acoustic cover

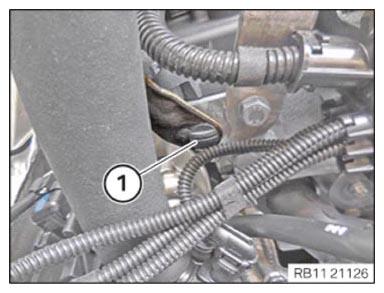

Loosen clip (1).
Courtesy of BMW OF NORTH AMERICA, INC.

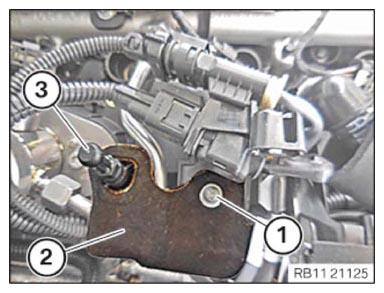

Loosen screw (1).
Guide out acoustic cover (2) out of the ball hub (3) and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
