Remove the seat cover with the cushion for the front seat

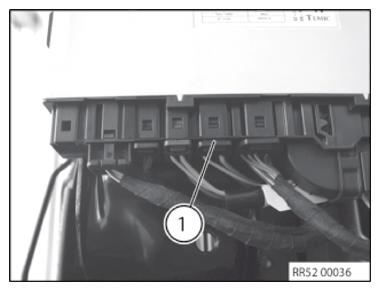

• Unlock plug connection (1) and disconnect.
• Feed out the wiring harness from the seat mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

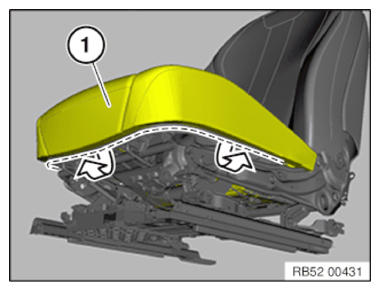

• Detach the seat cover (1) in the highlighted area.
• Insert the seat cover (1) between the backrest and the seat surface.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen clips (1) left and right.
• Loosen the clip (1) left and right.
• Loosen trim (1) from clamps (2) and feed out downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

• Releasing the ground cable of the seat occupancy mat (CIS)

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Remove the ground cable (2) for the seat occupancy mat from the seat mechanism (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Detach the welt from the seat mechanism.
• Remove the seat cover (1) and upholstery from the seat mechanism.

  If necessary, remove the associated wiring harness.
