NOTE:
TECHNICAL INFORMATION Check the plastic components of the locking mechanism or clamp for damage. Replace the charge air ducts with damaged plastic components on the locking mechanism.

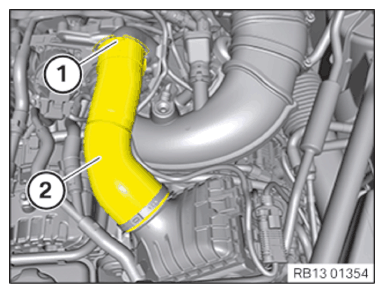

Unlock the lock (1).
Release left charge air line (2) from the exhaust turbocharger and set aside.
