Releasing the front brake caliper

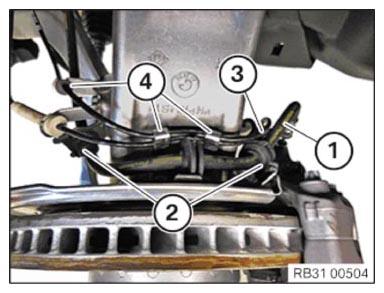

Release the brake hose (1) from the holders (2).

NOTE: Only perform the operation on the left side.

Release the cable (3) for the brake pad wear sensor from the holders (4).

G14435679

Courtesy of BMW OF NORTH AMERICA, INC.

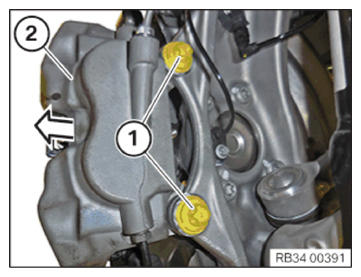

Loosen screws (1).
Detach the brake caliper (2) in the direction of the arrow.

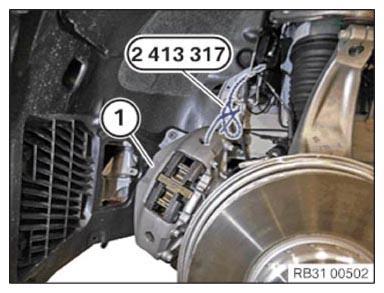

Tie up brake caliper (1) with special tool 2 413 317 in wheel arch.

G14191001

Courtesy of BMW OF NORTH AMERICA, INC.

G14435677

Courtesy of BMW OF NORTH AMERICA, INC.
